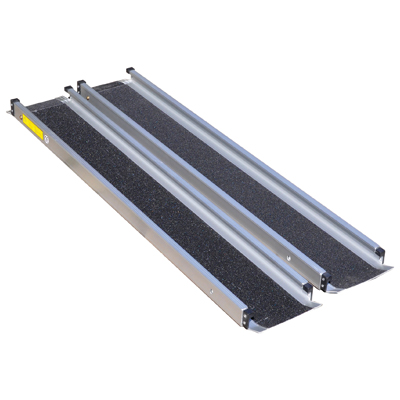

Telescopic Channel Ramps

VA147F

These compact, lightweight and durable Telescopic Channel Ramps are ideal for providing access to houses and cars for wheelchairs, scooters, walkers and rollators. Featuring a non-slip surface plus 2 locking points for safe use. The Telescopic Channel Ramps are available in 4 lengths.

Provides access to cars and homes for wheelchair and scooter users
Suitable for the majority of wheelchairs and scooters
Gritted surface for increased grip
Lightweight robust construction for ease of transport

Price:

Size

In Stock

If an item is not in stock in your country, or does not have the quantity you require. Please contact about international shipping.

Product Description

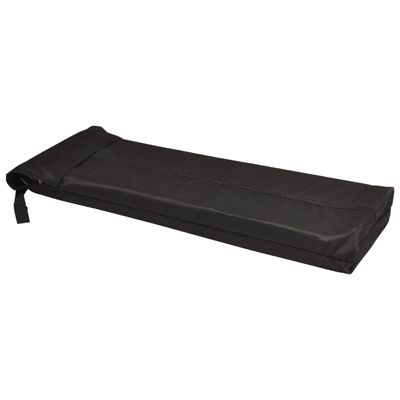

These compact, lightweight and durable Telescopic Channel Ramps are ideal for providing access to houses and cars for wheelchairs, scooters, walkers and rollators. Each 2-section, extending ramp is constructed from lightweight, rust-free aluminium and they are supplied with an easy-carry bag, making the ramps extremely portable and convenient to store. The ramps also feature top and bottom lips and a non-slip, black gritted surface for safety, with a load capacity of 272 kg (43 stone) on both channels. These versatile ramps feature security locks to fix the ramps to either the folded or collapsed length. The Telescopic Channel Ramps are available in 4 lengths.

Retail Information

	VA147F	VA147H	VA147M	VA147S
Maximum User Weight (stones)	43	43	43	43
Maximum Load (kg)	272	272	272	272
Net weight (kg)	5.15	6.25	7.1	9.1
Product Dimensions (mm)	1220x195x50	835x189x50	1830x195x50	1210x195x50
Maximum User Weight (kg)	272	272	272	272
Size	4 ft	5 ft	6 ft	7 ft
Length (Extended) (mm)	1220	1520	1830	2130
Length (Collapsed) (mm)	744.6	835	985	1201
Maximum Load (stones)	43	43	43	43
Width (Extended) (mm)	195	195	N/A	N/A
Channel Width (mm)	155	155	155	155
Colour	Silver	Silver & Black	Silver	Silver
Overall Width (mm)	N/A	N/A	192	N/A
Width (Folded) (mm)	N/A	N/A	195	N/A

Trade Information

	VA147F	VA147H	VA147M	VA147S
Gross Weight (kg)	6	7	7.75	10
Transport dimensions (mm)	760x235x80	910x235x85	1055x80x230	1210x235x80
Packaged dimensions (HxWxL mm)	760x235x80	910x235x85	1055x80x230	1210x235x80
Plastic weight (kg)	0.1	0.1	0.35	0.2
Paper weight (kg)	0.6	0.75	0.35	0.9
Gross Weight (Packaged) (kg)	6	7	7.75	10
Product EAN	5021196687924	5021196756132	5021196688129	5021196702368
Display Footprint (mm)	230x755x80	80x240x905	1055x80x230	230x1210x80
Item priced per	1	1	1	1
Packaging	Plain Box	Plain Box	Plain Box	Plain Box
Inner box quantity	1	1	1	1
Outer box quantity	1	1	1	1
Gross weight outer carton (kg)	5.8	7.05	7.75	9.6
Amazon Asin	B00AK9LCW6	B0114T357U	B00AK9LCR6	B00DOWDTJA
