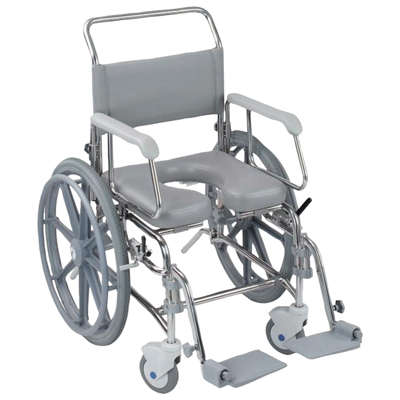

Transaqua (TA5) Self Propelled Shower Commode Chair

VB525G

The Transaqua range of modular mobile shower chairs are available in three seat widths and can be tailored to meet the individual clients needs.

Corrosion resistant stainless steel frame
HF welded seat completely sealed against water ingress for hygiene
Height adjustable to suit changes in the users condition
Swing away and removable locking arm & footrests
Swing away and removable height adjustable footrests
One frame fits both standard WC's and Clos-o-Mat toilets
Choice of seat styles, aperture, horseshoe and padded aperture with extended seat options
For ease of transportation the TransAqua can be dismantled without tools
Maximum user weight 200kgs (31 stones)

Price:

Product Description

Mobile showering solutions for the home, nursing home and hospital. Combining durable stainless steel with modular construction the TransAqua range of shower and toileting chairs offer flexibility for both user and carer. Height to underside of seat can decrease by up to 15mm if maximum load is applied. TransAqua height can be increased by 25mm or 50mm by the use of leg extension pins. Overall width can be reduced by 30mm (on Self Propelling models) if wheel rims removed. There are 3 different wheel size options (20", 22", 24") which give different seat heights and clearance dimensions. Please contact Chiltern Invadex for guidance.Please take advantage of our free on site surveying service.

Retail Information

	VB525G	VB526	VB526A
Floor to Arm (mm)	710	710	710
Net weight (kg)	21	21	21
Arm Height from Seat (mm)	186 - 270	270	186 - 270
Overall Height (mm)	970	970	970
Overall Depth (mm)	1029	891	1029
Model	TA5	TA3	TA1
Size	Seat Width: 19"	Seat Width: 510 (21")	Seat Width: 18"
Configuration	Self Propelled 19" Seat Width	N/A	Self Propelled 18" Seat Width
Overall Width (mm)	N/A	765	N/A
Maximum User Weight (stones)	N/A	31	N/A
Width between Arms (mm)	N/A	510	N/A
Footprint Width (mm)	N/A	765	N/A
Footprint (WxL) Min/Max (mm)	N/A	765x1029	N/A
Height from Floor to Top of Seat (mm)	N/A	523	N/A
Height of Arms from Seat (mm)	N/A	186	N/A
Colour	N/A	Grey/Steel	N/A
Seat Height (mm)	N/A	426	N/A
Footprint Depth (mm)	N/A	1029	N/A
Height from Seat to Top of Back (mm)	N/A	480	N/A
Seat Width (mm)	N/A	510	N/A
Seat Depth (mm)	N/A	435	N/A
Height of Handle from Floor (mm)	N/A	970	N/A
Height To Top Of Back From Floor	N/A	970	N/A
Back Rest (mm)	N/A	480x537x25	N/A
Arm Height (mm)	N/A	270	N/A
Maximum User Weight (kg)	N/A	200	N/A
Overall Height (To Top Of Pram Handle)	N/A	970	N/A
Padded Seat (WxL) (mm)	N/A	510x435	N/A
Product Dimensions (mm)	N/A	970x765x1029	N/A

Trade Information

	VB525G	VB526	VB526A
Packaged dimensions (HxWxL mm)	500x600x680	500x600x680	500x600x680
Transport dimensions (mm)	680x500x600	680x500x600	680x500x600
Gross Weight (Packaged) (kg)	25	25	25
Product EAN	5021196644705	5021196634522	5021196634539
Item priced per	1	1	1
Packaging	Plain Box	Plain Box	Plain Box
Paper weight (kg)	N/A	3	N/A
