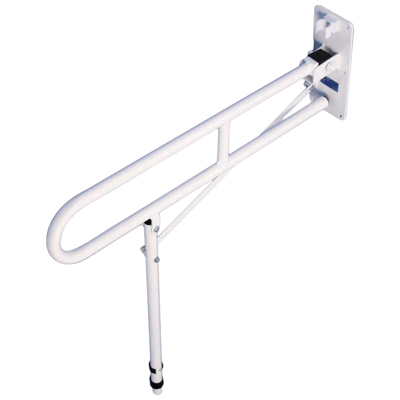

Solo Contract Hinged Arm Support

VY423

The Solo Contract Hinged Arm Support is available with our without the height adjustable leg, enabling the bathroom support arm to be set at various heights to suit most needs. It features a simple fold up/fold down mechanism for ease of use.

Ideal for use in the bathroom where safety is a concern
Simple fold up/fold down mechanism
Available with height adjustable leg to suit the majority of users
Epoxy coated ensuring durability
750 mm long bar

Price:

Configuration

Out of Stock

In Stock

If an item is not in stock in your country, or does not have the quantity you require. Please contact about international shipping.

Product Description

The Solo Contract Hinged Arm Support is an excellent product for value and safety. It features a simple fold up/fold down mechanism for ease of use. The added feature of the optional support leg on the VY423 provides extra stability, especially where more downward pressure may be applied when in use. The leg assembly on the VY423 is height adjustable enabling the bathroom support arm to be set at various heights to suit most needs.

Retail Information

	VY423	VY424
Tube Diameter (mm)	22.2	25
User Weight Limit (st)	18	18
Net weight (kg)	3.1	3.2
Maximum Load (kg)	115	115
Maximum User Weight (stones)	18	18
User Weight Limit (kg)	115	115
Maximum User Weight (kg)	115	115
Weight Limit (kg)	115	115
Product Dimensions (mm)	710x100x760	870x100x165
Size	100x760x710-870	N/A
Length (Extended) (mm)	750	750
Depth to Wall (mm)	760	755
Length of Side Leg (mm)	555	N/A
Configuration	White - with Leg	White - without Leg
Back Plate Size (mm)	100x260	260x100x5
Colour	White	White

Trade Information

	VY423	VY424
Gross Weight (kg)	3.75	3.2
Outer box quantity	2	2
Packaged dimensions (HxWxL mm)	760x150x810	870x100x165
Transport dimensions (mm)	760x100x200	870x100x165
Gross Weight (Packaged) (kg)	3.75	3.2
Outer box (HxWxL mm)	910x220x130	N/A
Plastic weight (kg)	0.03	N/A
Product EAN	5021196598077	5021196598084
Gross weight outer carton (kg)	7.1	7.1
Display Footprint (mm)	710x100x760	N/A
Inner box (HxWxL mm)	350x1000x0.03	N/A
Inner box quantity	1	1
Item priced per	1	1
Packaging	Unpackaged	Unpackaged
Amazon Asin	B002NPQQIK	B002NPWO1I
