Aluminium Threshold Bridging Ramp

VA146D

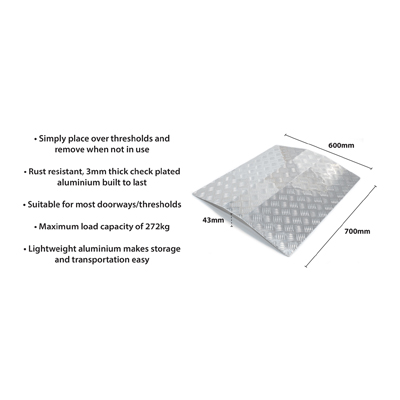

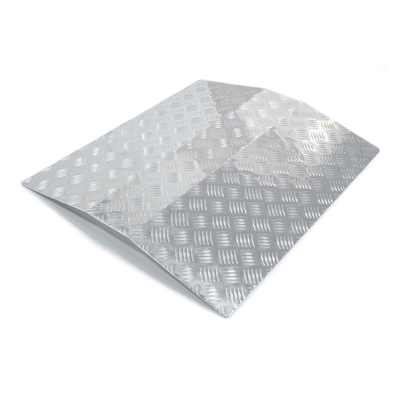

Aluminium bridging ramp is lightweight and portable. Ideal for use on door thresholds.

DURABLE; Made from 3mm thick check plated aluminium. Rust resistant, robust and built to last!

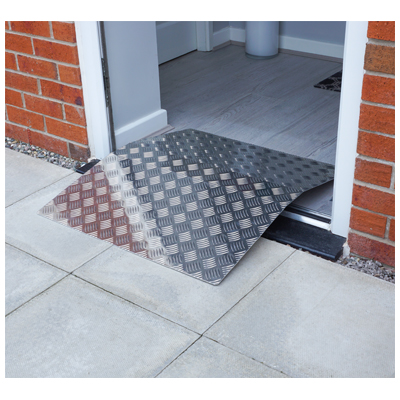

INSTALLATION; No tools required, simply place over your threshold and remove when not in use

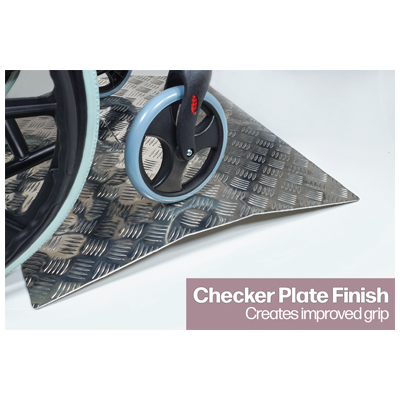

SAFETY; Non-slip pads on the underside of the ramp to keep in place. Checker plate finish for improved grip
SIZES; Suitable for most doorways/thresholds. Supplied in 600mm,800mm or 1000mm lengths
HEIGHT RANGES; The 600mm long ramp has a height of 75mm, the 800mm long ramp has a height of 100mm and the 1000mm long ramp has a height of 110mm
PORTABLE; Lightweight aluminum makes storage and transportation easy
MAX LOAD; Maximum load capacity is 272kg

Price:

Out of Stock

In Stock

If an item is not in stock in your country, or does not have the quantity you require. Please contact about international shipping.

Product Description

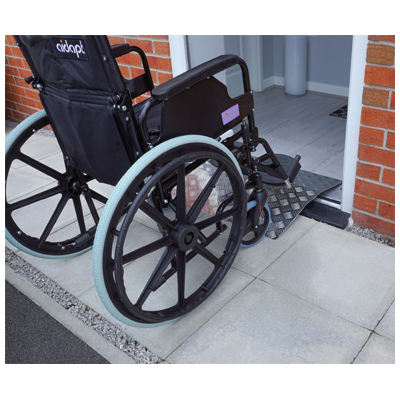

The Aluminium bridging threshold ramp is a lightweight and portable piece of equipment that will help anyone in a wheelchair or scooter easily negotiate a doorway that is not level. It is available in three different lengths and heights to suit most applications. The ramp is manufactured from durable checker plated aluminium that ensures good grip and is rust resistant for longevity of service. The ramp has anti-slip pads on the underside for added stability and allows surfaces to be protected whilst the ramp is in use. It is simple to install with no tools to assemble of fixings needed. Maximum Load Capacity is 272kg.

Retail Information

	VA146D	VA146E	VA146F
Colour	Silver	Silver	Silver
Length (mm)	600	800	1000
Overall Width (mm)	700	700	700
Thickness (mm)	3	3	3
Net weight (kg)	3.35	4.5	5.5
Maximum Load (kg)	272	272	272
Overall Height (mm)	75	100	110
Product Dimensions (mm)	75x700x600	100x700x800	110x700x1000

Trade Information

	VA146D	VA146E	VA146F
Packaging	Plain Box	Plain Box	Plain Box
Inner box quantity	1	1	1
Product EAN	5021196852650	5021196852674	5021196852698
Amazon Asin	B0CF5TRWXX	B0CF5V9WS5	B0CF5SX26R
Gross weight outer carton (kg)	4.65	6.3	7.8
Gross Weight (kg)	4.65	6.3	7.8
Outer box quantity	1	1	1
Gross Weight (Packaged) (kg)	4.65	6.3	7.8
Packaged dimensions (HxWxL mm)	710x610x85	810x710x110	1010x710x120
Transport dimensions (mm)	710x610x85	810x710x110	1010x710x120
Item priced per	1	1	1
Outer box (HxWxL mm)	710x610x85	810x710x110	1010x710x120
Warranty Period	12 Months	12 Months	12 Months
